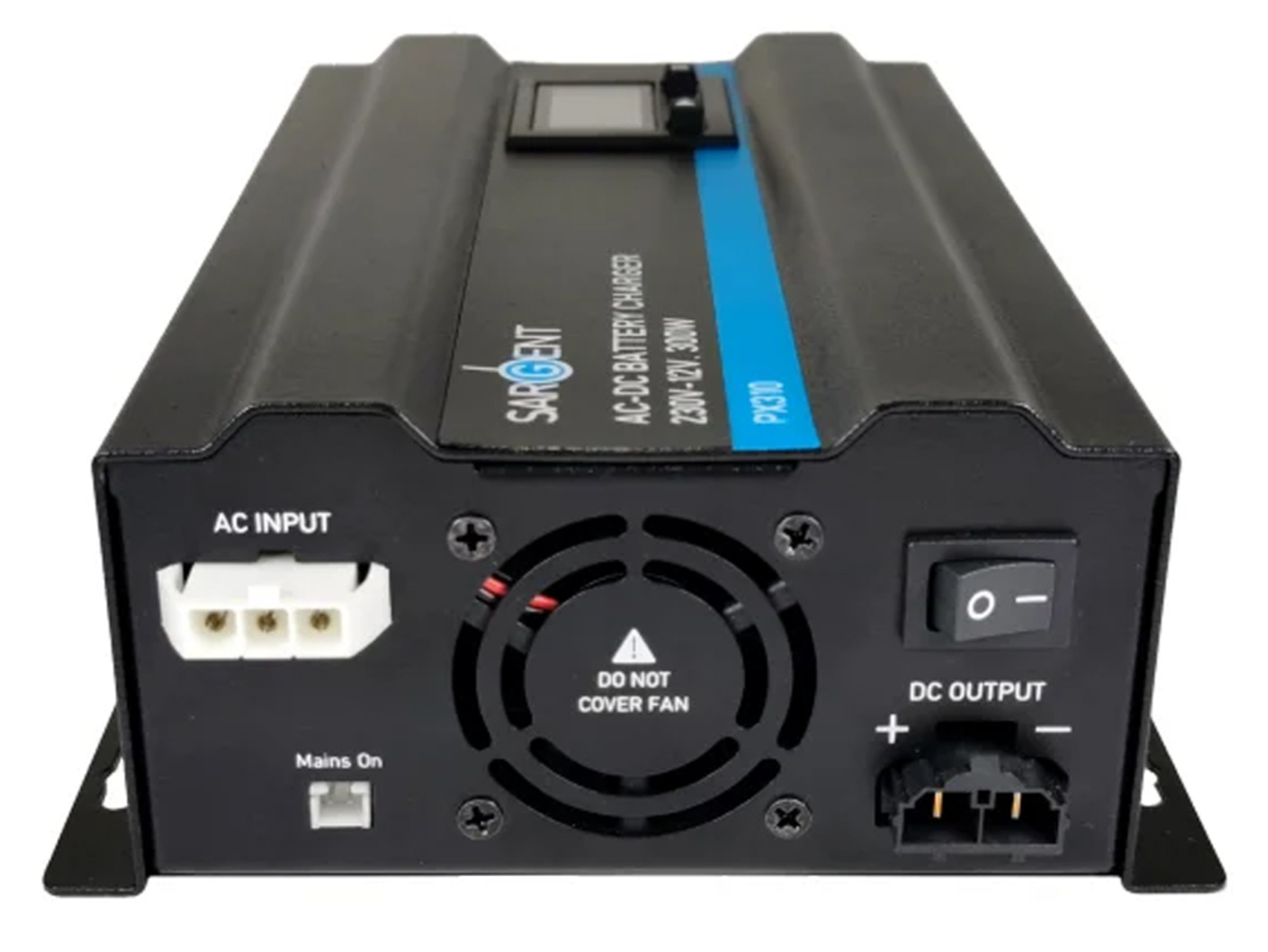

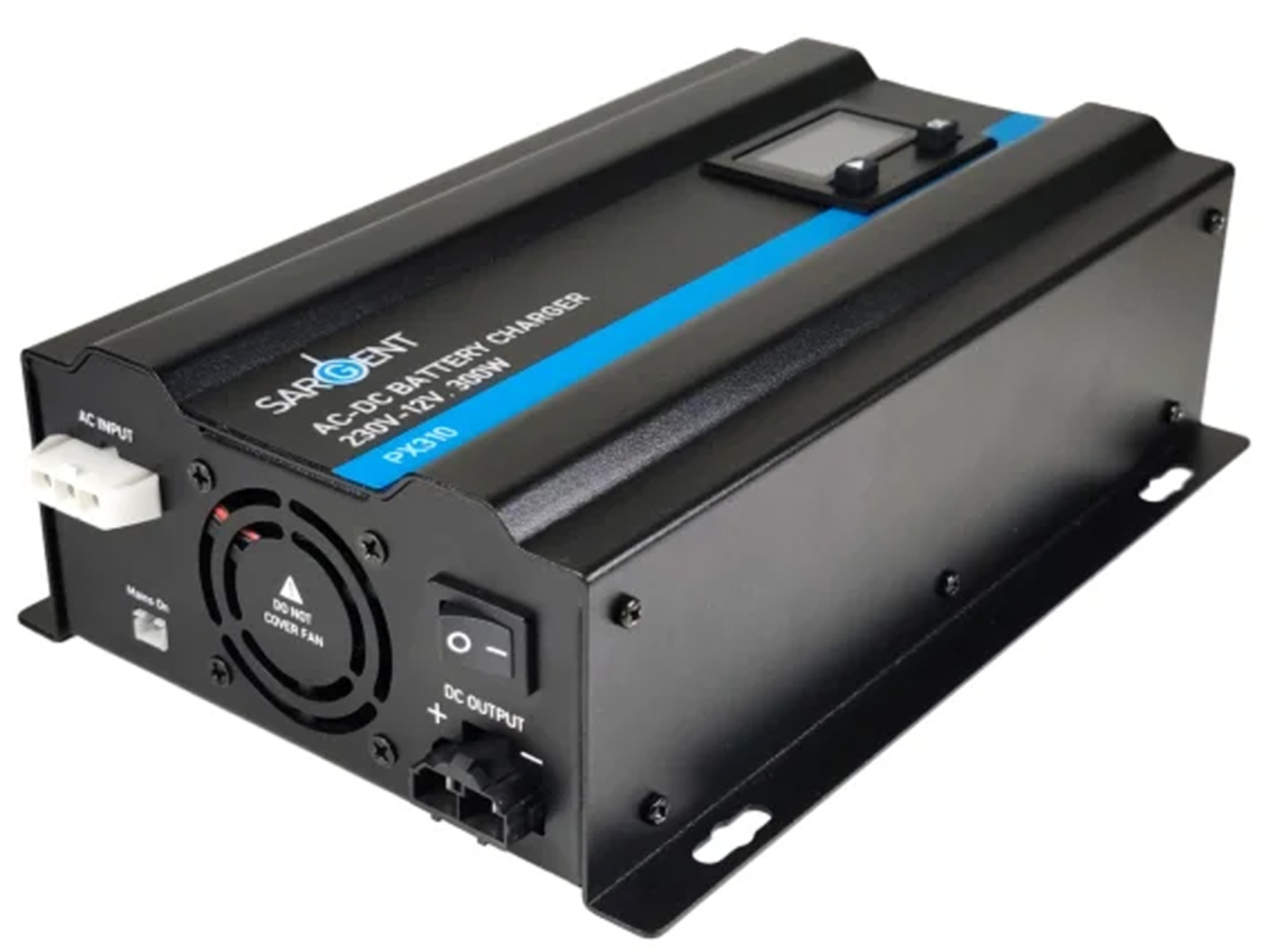

Sargent PX310 Intelligent Transformer Battery Charger comes with a short adaptor cable which matches the 12v connector on many Nordelettronica charger units. This cable can also be used with 6.3mm female spade terminals. A short 230V cable is also supplied, for connection to a 5A fused 230V supply. The charger is configured to work with standard lead/acid batteries and in most cases is compatible with Absorbed Glass matt (AGM) batteries.
During stage 1 the battery voltage is increased gradually while the current is limited to start the charging process and protect the battery. At stage 2 the voltage rises to 14.7V (Vboost) to delivery the bulk of the charge to the battery. When the battery is charged, the voltage is decreased at stage 3 to 13.8V (Vfit) to deliver a float charge to maintain the battery in the fully charged state. The charger can be left switched on continuously as required.
The Sargent PX310 Intelligent Battery Charger/power converter can also provide power to the leisure equipment when the mains power is connected. This module supplies DC to the leisure equipment up to a maximum of 20amps (300Watts), therefore the available power is distributed between the leisure load and the battery, under these conditions the charge indicator will show red
Specifications:
- 3 stage switching mode battery charger.
- Short circuit protection.
- Integrated LCD display
- Reverse polarity protection.
- Over temperature protection.
- Input: 200-240V AC.
- Output: 13.8 to 14.7V DC 300W.
- Battery Size: 70-220ah
- Dimensions: 221 x 157 x 67mm.
- Weight: 1.55Kg
- Mating input connector: JST L-connector plug with pins.
- Mating output connector: Molex HNF plug.
- Approvals: IEC 60335-2-19:2003, IEC 60335-1:2001.
